HYDROCYCLONIC/PARTICLE SEPARATION

Hydro cyclonic, Centrifugal Separation or Particle Separators are all essentially terms used for a filtration method for reduction of total suspended solids in fluid.  The principle technology typically uses a conical shaped separator that accelerates the velocity of water maximizing separation of sand and other solid matter with greater than 90% efficiency.  Hydro cyclonic Separators are not true filters. (Having no physical barrier to stop certain size particles from the water stream.)

Based on the centrifuge principle, the particles are spun against the outside wall of the Hydro cyclone and gravitate towards the bottom into the drain while clean liquid moves upward to the center of the spiral, towards the top outlet. The velocity at which the water flows through the Hydro cyclone determines the efficiency at which the particles are separated from the water.

Hydro cyclonic, Centrifugal Separation or Particle Separators are all essentially terms used for a filtration method for reduction of total suspended solids in fluid.  The principle technology typically uses a conical shaped separator that accelerates the velocity of water maximizing separation of sand and other solid matter with greater than 90% efficiency.  Hydro cyclonic Separators are not true filters. (Having no physical barrier to stop certain size particles from the water stream.)

Based on the centrifuge principle, the particles are spun against the outside wall of the Hydro cyclone and gravitate towards the bottom into the drain while clean liquid moves upward to the center of the spiral, towards the top outlet. The velocity at which the water flows through the Hydro cyclone determines the efficiency at which the particles are separated from the water.

• Hydromechanical and biological system
• No chemicals added
• Easy to install, no filters
• Low maintenance charge

Reclaim Max Output - 60

Self Priming Centrifugal Pump - 3

AMP Draw @ 208/230 VAC - 8.0-8.5

AMP Draw @ 460/480 VAC - 4

Dims 48" x 16" x 74" H - 36"x18"x52"

Net Weight (lbs) - 650

• Conical shape accelerates the velocity of the water increasing centrifical forces and maximizing separation.
• Easy to operate and maintain with
• No headloss build-up or clogging during separation.
• Specially designed rubber cone/insert protects the neck from erosion and increases separation.
• Maximum anti-corrosion protection with durable and long-lasting coating materials.

• For separation of sand and other solid matter from water
• Protection of valves and other in-line equipment  from damage/abrasion caused by sand and other solid matter
• Economical option for Pre-filtering of water prior to other pretreatment
• Body: 100 micron Polyester oven-cured protective coating with Zinc Phosphate underlayer

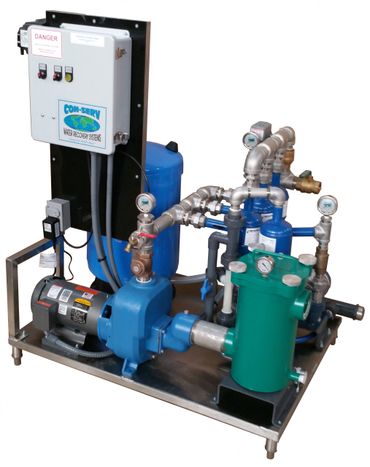

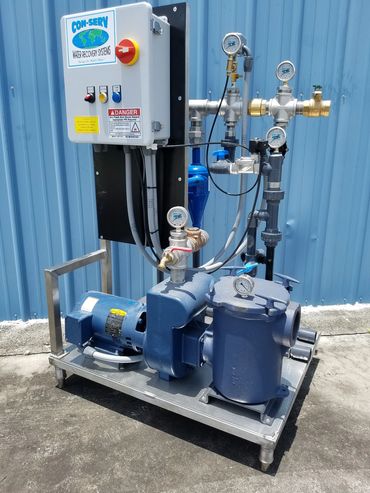

The Con-Serv Manufacturing Hydrocyclonic System utilizes particle separation to provide quality filtered water for reuse in many applications. Built on a compact custom powder coated frame with splash guard, this small system will provide 50-60 gallons per minute of water to your equipment as well as providing continuous circulation of the reservoir tanks with aerated water and BIOZONE odor control. The new system utilizes dual particle separation technology, proven to provide better quality end results than other common singular separation techniques. The dual separator reclaim system includes VFD driven continuous duty three phase motor, self priming centrifugal pump, constant circulation of reservoir, mass air injection, BIOZONE odor control system, powder coated splash guard frame,  and control signal activation. Options are available to customize unit to your specification.

Additional sizes and flow rates available
